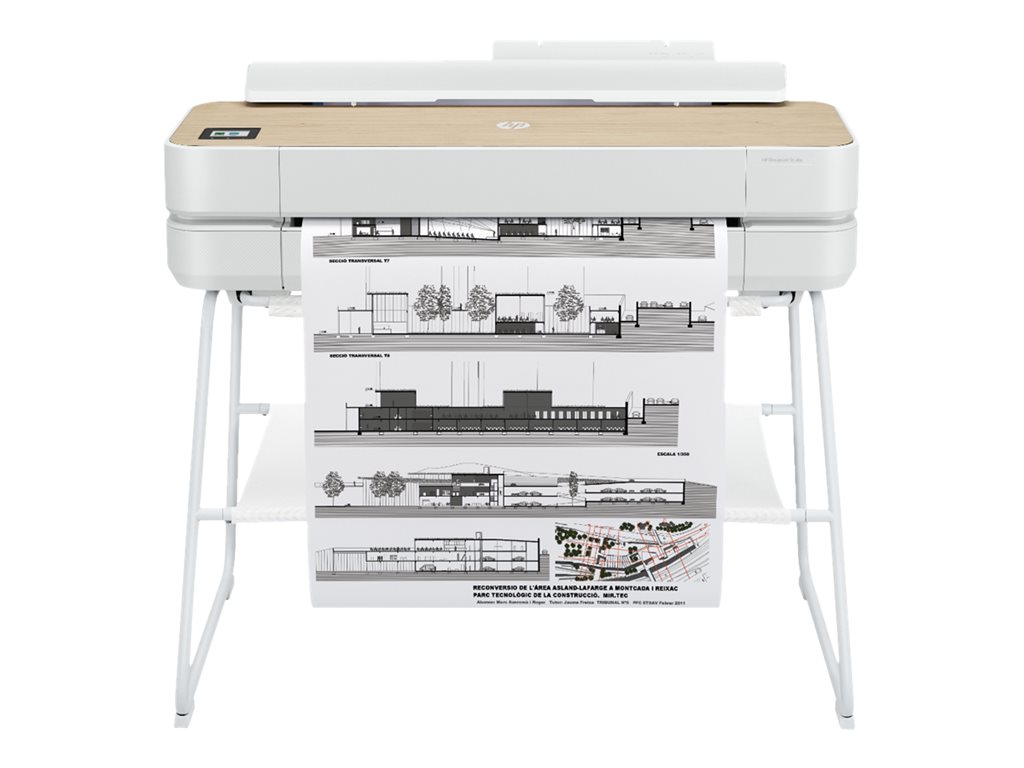

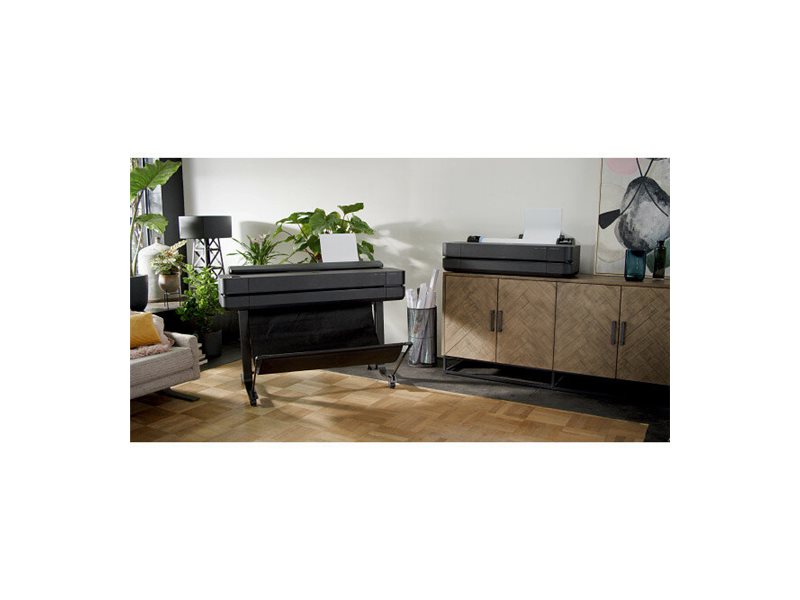

HP Inc. - HP DesignJet Studio
24" large-format printer - color - ink-jet - ANSI D, - 2400 x 1200 dpi - up to 0.4 min/page (mono) / up to 0.4 min/page (color) - capacity: 1 roll - Gigabit LAN, Wi-Fi(n), USB 2.0 - cutter
HP Inc.
5HB12H#B1K
N/A
0196548501700
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP DesignJet Studio - large-format printer - color - ink-jet |
| Printer Type | 24" large-format printer - ink-jet - color |
| Weight | 74.07 lbs |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Max Media Size | ANSI D (22 in x 34 in), Roll (24 in x 150 ft) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in x 150 ft |
| Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Cutter | Yes |
| Interface | Gigabit LAN, Wi-Fi(n), USB 2.0 |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 1 GB (1 GB) |
| Language Simulation | HP GL/2, HP RTL, CALS G4, JPEG, URF |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Total Media Capacity | 1 roll |
| Networking | Print server |
| Printer Features | 4.1 kg max roll weight, print from mobile device, Wireless Direct Print |
| Power | AC 100-240 V |
| Manufacturer Warranty | 3-year warranty |
| Dimensions (WxDxH) | 39.9 in x 21.9 in x 36.7 in |
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Stand, roll cover, spindle, setup poster |
| Consumables Included | 1 x ink cartridge (cyan) ¦ 1 x ink cartridge (magenta) ¦ 1 x ink cartridge (yellow) ¦ 1 x ink cartridge (black) ¦ 1 x feed roller ¦ 1 x printhead |
| Compliant Standards | FCC Class B certified, ICES Class B, RED, EMC Class B, ACMA, RSM, CCC Class B, VCCI Class B, KCC Class B, WEEE, RoHS, REACH, ERP, CSA, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, PSB, CCC, IRAM, BIS, FSC, NYCE, UA |
| Printer | |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Nozzle Configuration | 1376 nozzles |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
| Built-in Devices | Control panel |
| Connectivity Technology | Wireless |
| Interface | Gigabit LAN, Wi-Fi(n), USB 2.0 |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Language Simulation | HP GL/2, HP RTL, CALS G4, JPEG, URF |
| Cutter | Yes |
| Printer Features | 4.1 kg max roll weight, print from mobile device, Wireless Direct Print |
| RAM | |
| RAM Installed (Max) | 1 GB / 1 GB (max) |
| Media Handling | |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Max Media Size | ANSI D (22 in x 34 in), Roll (24 in x 150 ft) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in x 150 ft |
| Media Sizes | A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), Letter A Size (8.5 in x 11 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI D (22 in x 34 in), Roll (24 in x 150 ft) |
| Media Thickness Range | Up to 0.012 in |
| Media Weight | 60 g/m² - 280 g/m² |
| Total Media Capacity | 1 roll |
| Media Feeders | 1 x manual - 1 roll - Roll (24 in x 150 ft) weight: 60 g/m² - 280 g/m² |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Software / System Requirements | |
| Software Included | HP Click, HP DesignJet Utility, HP Smart App, HP Easy Start, HP Support Assistant |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Dimensions & Weight | |
| Width | 39.9 in |
| Depth | 21.9 in |
| Height | 36.7 in |
| Weight | 74.07 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 47.2 in |
| Depth (Shipping) | 23.2 in |
| Height (Shipping) | 20.6 in |
| Weight (Shipping) | 94.8 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
