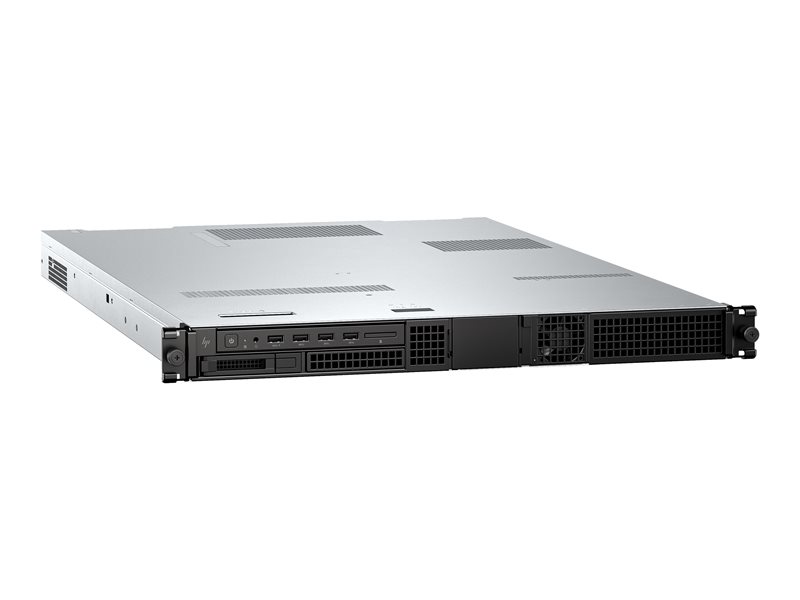

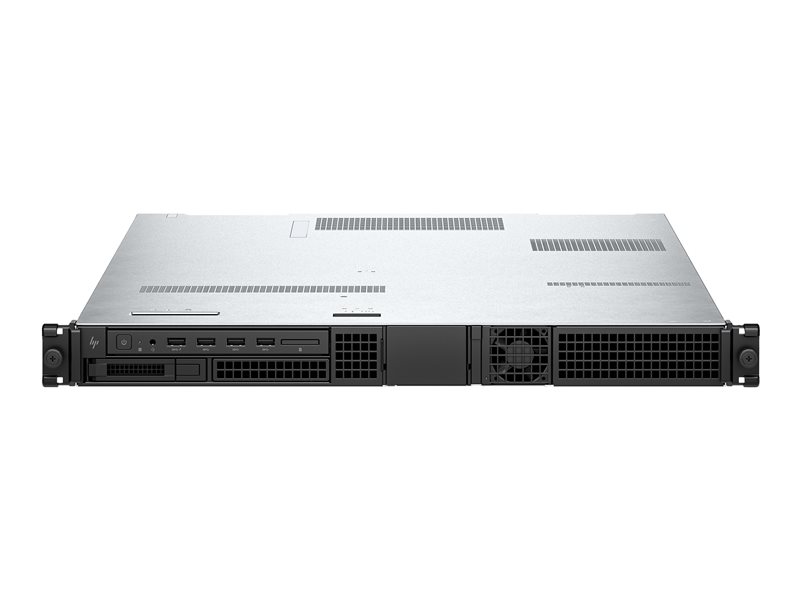

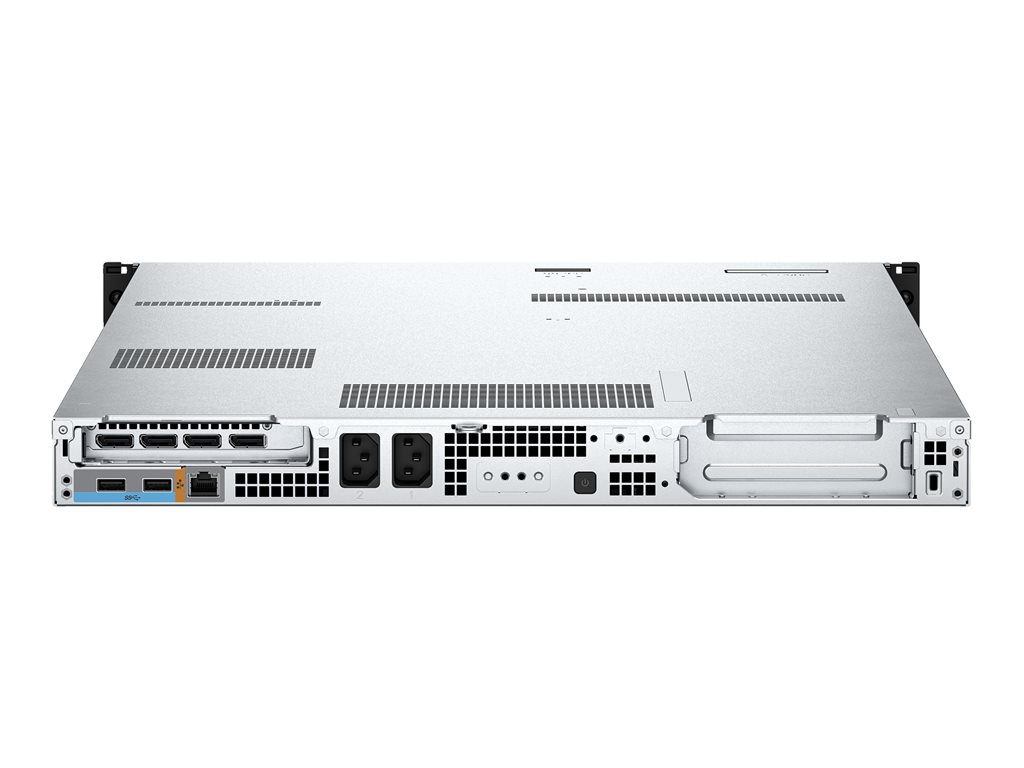

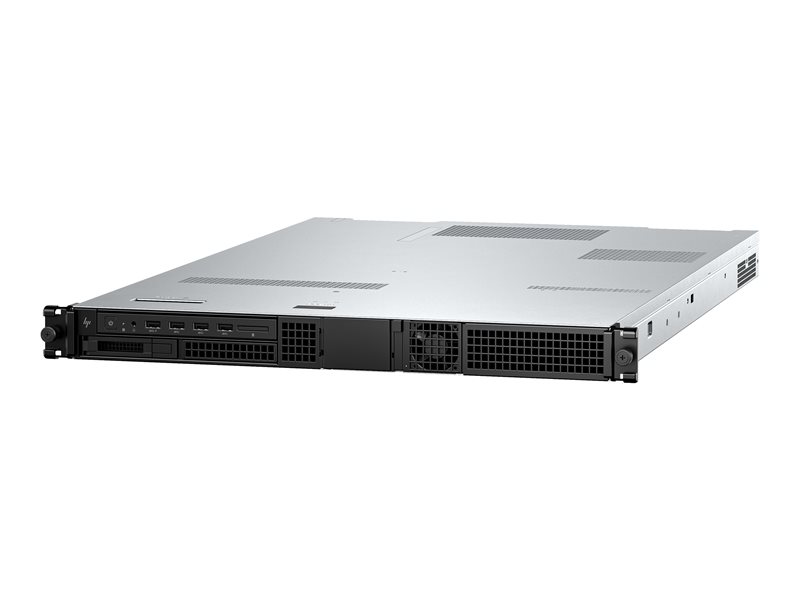

HP Inc. - HP Workstation Z4 G5
Rack-mountable 1U - 1 x Xeon W W5-2455X / up to 4.6 GHz - RAM 32 GB - SSD 2 x 1 TB - HP Z Turbo Drive, NVMe, TLC, SSD 2 x 512 GB - Quadro T400 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - with HP 3 years Onsite Care Hardware Support for Workstations
HP Inc.
A4WQ0UA#ABA
N/A
0198415400796
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z4 G5 - rack-mountable Xeon W W5-2455X 3.2 GHz - 32 GB - SSD 2 x 1 TB, SSD 2 x 512 GB - US |
| Type | Workstation - rack-mountable |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Height (Rack Units) | 1U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon W W5-2455X / 3.2 GHz (up to 4.6 GHz, (12-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 256 GB (max) - DDR5 SDRAM - ECC |
| Hard Drive | 2 x SSD 1 TB - PCI Express 4.0 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Hard Drive (2nd) | 2 x SSD 512 GB - PCI Express 4.0 - M.2 2280 |
| Optical Storage | No optical drive |
| Graphics Controller | PCIe 3.0 x16 - NVIDIA Quadro T400 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 |
| Dimensions (WxDxH) | 17.2 in x 25.7 in x 1.7 in |
| Weight | 20.94 lbs |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified |
| Carbon Footprint | 550 kg carbon emissions |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year - on-site |
| General | |
| Type | Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x external 2.5" / 2xM.2 shared ¦ 2 (total) / 2 (free) x internal 2.5" / 2xM.2 shared / 1x3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 5.0 x8 (x8 mode) ¦ 2 (total) / 0 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage)) |
| Interfaces | 4 x USB 3.2 Gen 1 (4 in front) (one of them is charging) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 3 x Mini DisplayPort 1.4a |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2 |
| RAM | |
| Installed Size | 32 GB (installed) / 256 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10 |
| Power | |
| Device Type | Power supply |
| Max Supported Qty | 2 |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 3.0 x16 |
| Graphics Processor | NVIDIA Quadro T400 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Bandwidth | 80 GBps |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 2 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.7 in |
| Height | 1.7 in |
| Weight | 20.94 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.2 in |
| Shipping Depth | 35.4 in |
| Shipping Height | 8.7 in |
| Hard Drive (2nd) | |
| Type | SSD - M.2 2280 |
| Interface Class | PCI Express |
| Capacity | 2 x 512 GB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel Xeon W W5-2455X |
| Clock Speed | 3.2 GHz |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel W790 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 550 kg carbon emissions |
| Manufacturing (kg CO2e) | 221 |
| Logistics (kg CO2e) | 2 |
| Use (kg CO2e) | 323 |
| EOL (kg CO2e) | 3 |
| Total Carbon w/o Use Phase (kg CO2e) | 550 |
