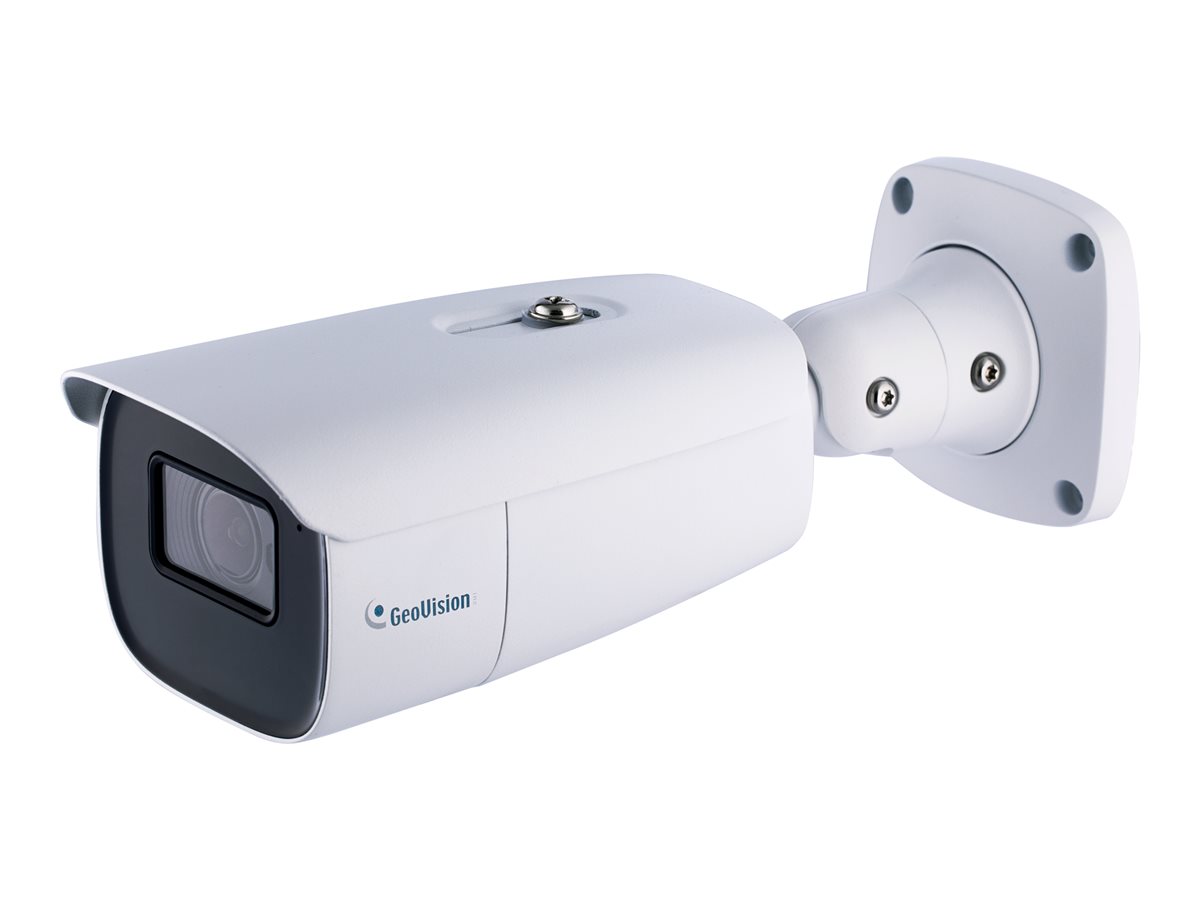

GeoVision - GeoVision GV-GBL12811
Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 12 MP - 4000 x 3000 - ?14 mount - auto iris - motorized - audio - Ethernet 10Base-T/100Base-T - H.265+, H.264+, MJPEG, H.265, H.264 - DC 12 V / PoE
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | GeoVision GV-GBL12811 - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 3.7 in x 10.7 in x 3.5 in |
| Weight | 2.47 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 4.3 x |
| Max Resolution | 4000 x 3000 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/1.7" - 12 MP |
| Minimum Illumination | 0.006 lux - color - F1.4 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 2.8 mm - 12 mm |
| Lens Mounting | ?14 mount |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/1.4 - auto iris (DC Iris) |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-T |
| Cables Included | 1 - video cable - detachable |
| Voltage | DC 12 V / PoE |
| Features | Infrared-cut filter, perimeter protection, human classification, vehicle classification, auto white balance, manual white balance, auto gain control, manual gain control, 50 dB signal-to-noise ratio, 75 dB SNR, DORI coverage, 5 video streams, abnormal color detection, Scene Change Detection, video blur detection, Object Left detection, smart alarm, brightness control, contrast control, hue control, saturation control, Wide Dynamic Range (WDR), sharpness control, Defog, 3D digital noise reduction (DNR), Backlight Compensation (BLC), anti-flicker, image flip, image mirror, 180° image rotation, 270° image rotation, 90° image rotation, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, firmware upgradable |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Bullet |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 3.7 in |
| Depth | 10.7 in |
| Height | 3.5 in |
| Weight | 2.47 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Digital input - terminal block ¦ Digital output - terminal block ¦ Audio line in - 3.5 mm stereo jack ¦ Audio line out - 3.5 mm stereo jack ¦ Video output - BNC |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Hex key, screw kit, drill hole template, power cable |
| Cables Included | 1 x video cable - detachable |
| Compliant Standards | IK10, IP67, IEEE 802.3af, FCC, RoHS, UKCA |
| Power | |
| Power Requirements | DC 12 V / PoE - 1.5 A |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | H.265+, H.264+, MJPEG, H.265, H.264 |
| Max Digital Video Resolution | 4000 x 3000 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.006 lux - color - F1.4 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 230 ft |
| Digital Video Capture Resolution | 4000 x 3000, 3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 704 x 480, 640 x 360, 480 x 240, 352 x 288, 352 x 240, 640 x 480 |
| Frame Rate (max) | 30 frames per second |
| Features | Infrared-cut filter, perimeter protection, human classification, vehicle classification, auto white balance, manual white balance, auto gain control, manual gain control, 50 dB signal-to-noise ratio, 75 dB SNR, DORI coverage, 5 video streams, abnormal color detection, Scene Change Detection, video blur detection, Object Left detection, smart alarm, brightness control, contrast control, hue control, saturation control, Wide Dynamic Range (WDR), sharpness control, Defog, 3D digital noise reduction (DNR), Backlight Compensation (BLC), anti-flicker, image flip, image mirror, 180° image rotation, 270° image rotation, 90° image rotation, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile T) support, firmware upgradable |
| Lens Construction | |
| Type | ?14 mount - motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 auto iris (DC Iris) |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 46 - 96 |
| Vertical Field of View (degree) | 35 - 70 |
| Diagonal Field of View (degree) | 58 - 128 |
| Image Sensor | |
| Type | 12 MP PS CMOS 1/1.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTMP, RTSP, SNMP, SMTP, UDP, UPnP |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
